In the world of fasteners, tubular rivets, and closed-end rivets (such as blind or expansion rivets) are two commonly used types of rivets that serve a wide range of industrial applications. Both offer unique advantages depending on the project requirements. However, when selecting the right rivet for a particular application, it is crucial to understand the differences in their designs, installation methods, and performance. This article compares tubular rivets and closed-end rivets, highlighting their strengths, weaknesses, and ideal use cases.

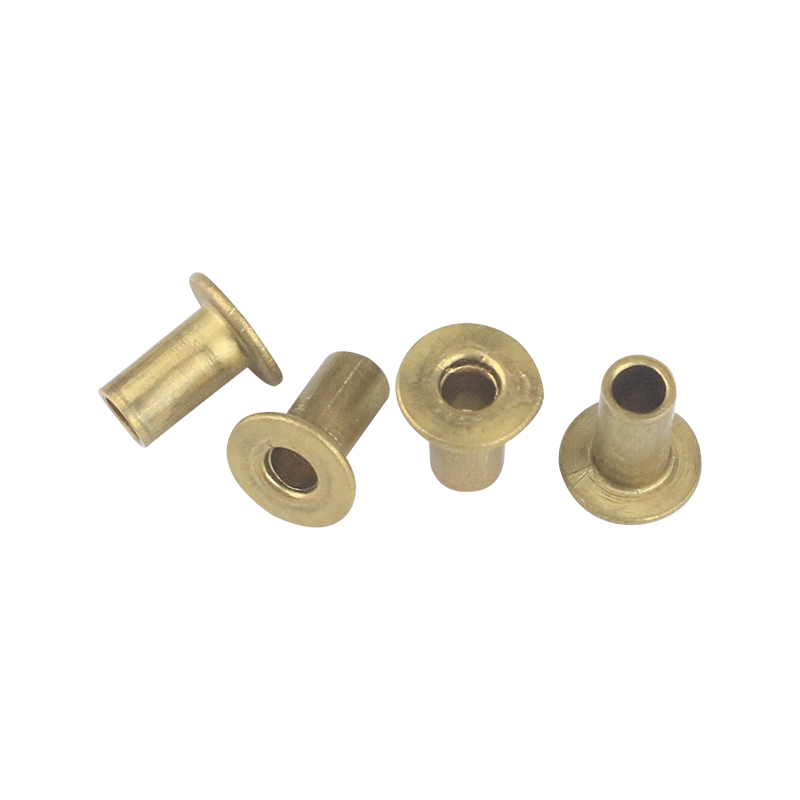

What Are Tubular Rivets?
Tubular rivets are characterized by their hollow, tube-like shape, which distinguishes them from other types of rivets. These rivets have a cylindrical body with an open end that is deformed during installation to create a secure and permanent connection. Tubular rivets are often used in industries such as automotive, aerospace, electronics, and construction, due to their strength, versatility, and ability to securely join two or more materials.

The tubular structure of these rivets provides several key benefits, such as increased strength, resistance to shear and tension forces, and the ability to hold multiple materials together effectively. Additionally, tubular rivets come in a wide variety of sizes, materials, and designs, making them suitable for many different applications.

What Are Closed-End Rivets?
Closed-end rivets, also known as blind rivets or expansion rivets, feature a fully enclosed body, meaning there is no open end. These rivets expand inside a pre-drilled hole to secure materials together. The common types of closed-end rivets are blind rivets, which are widely used in situations where access to only one side of the materials is possible.

Closed-end rivets are typically made from materials like aluminum, steel, or stainless steel, and are designed for quick, reliable fastening. One of their primary benefits is the ability to be installed without needing access to both sides of the joint, making them highly versatile for applications where the back side is inaccessible.

Key Differences Between Tubular Rivets and Closed-End Rivets
1. Design and Structure
The obvious difference between tubular rivets and closed-end rivets is their design. Tubular rivets have a hollow, cylindrical shape, which allows them to expand when pressure is applied during installation. The expansion of the rivet's tail creates a strong, secure connection between materials.

On the other hand, closed-end rivets are solid and do not have an open or hollow end. When installed, the rivet expands at the rear, creating a strong, uniform connection. The closed-end design allows for a more secure seal, which can be especially useful in applications where leakage prevention or watertight seals are needed.

2. Installation Methods
Installation methods differ between tubular rivets and closed-end rivets. Tubular rivets can be installed by hand using a rivet gun or via mechanical means in larger production settings. The installation process involves inserting the rivet into a pre-drilled hole, followed by applying pressure to deform the hollow tail, securing the materials together.

Closed-end rivets, specifically blind rivets, can be installed from one side of the joint, making them ideal for situations where access to the back side of the materials is impossible. The rivet is placed into the hole, and a rivet gun or pneumatic tool is used to pull the mandrel through, causing the rivet to expand and create a strong bond.

3. Strength and Durability
Both types of rivets are designed to provide strong, durable connections. However, the strength of the connection can depend on the materials being fastened, the size of the rivet, and the type of installation used. Tubular rivets are generally considered to provide strength when used in high-stress applications, as their hollow design allows them to distribute forces more evenly.

Closed-end rivets, particularly those made from high-quality materials like stainless steel, also offer strength, though their expansion mechanism may not be as robust as tubular rivets. Closed-end rivets are ideal for applications where access to both sides of the joint is limited, and their ability to form tight seals is particularly beneficial in environments where water, dust, or other contaminants need to be kept out.

4. Sealing Capabilities
Closed-end rivets, especially expansion or blind rivets, are often preferred when sealing is a critical concern. Because of their fully enclosed structure, closed-end rivets create a barrier that can resist leakage, moisture, or environmental damage. This makes them ideal for applications such as sealing electrical components, plumbing, and outdoor equipment.

While tubular rivets can also offer a solid connection, they do not provide the same level of sealing as closed-end rivets. The hollow body of a tubular rivet may allow for some degree of moisture or air leakage, depending on the application and the materials being used. However, in some cases, tubular rivets may be designed to include a sealing element or washer to improve their sealing performance.

5. Cost and Installation Efficiency
Cost and installation efficiency can vary between tubular rivets and closed-end rivets. Tubular rivets are generally more affordable and easier to source, especially for larger projects that require high-volume installations. They are commonly used in industries such as automotive manufacturing, where large numbers of rivets are needed for various applications.

Closed-end rivets, while often more expensive due to their advanced sealing capabilities, may be more efficient for certain applications, particularly when the installation needs to be done quickly or with limited access. Their ability to be installed from one side of the joint without the need for a second worker or access to the back side can speed up production and reduce labor costs.

Applications: When to Use Tubular Rivets vs. Closed-End Rivets
The decision to use tubular rivets or closed-end rivets largely depends on the specific requirements of the application. Here are some scenarios where each type of rivet excels:

Tubular Rivets:
Automotive and Aerospace Industries: Tubular rivets are commonly used in automotive and aerospace applications where strength, durability, and the ability to handle high-stress loads are important.

Woodworking: In woodworking, tubular rivets can be used to attach metal parts or reinforce wooden structures, especially in applications where a permanent, strong bond is required.

Furniture Manufacturing: Tubular rivets are often used in furniture assembly, particularly for attaching metal components to wooden or plastic parts.

Electrical Enclosures: Tubular rivets can provide a strong connection in the assembly of electrical boxes, enclosures, and other equipment requiring robust fasteners.

Closed-End Rivets:
Sealing Applications: Closed-end rivets are ideal for applications that require moisture resistance, such as sealing metal or plastic enclosures for electrical components, plumbing systems, or outdoor equipment.

In construction, closed-end rivets can be used for securing materials where exposure to weather elements may be a concern.

Automotive and Marine Applications: Closed-end rivets are often used in automotive and marine industries where environmental sealing is a primary concern, such as sealing body panels or joining parts that may be exposed to water or chemicals.

Which Rivet is Right for Your Project?
Both tubular rivets and closed-end rivets offer distinct advantages, depending on the application. Tubular rivets are known for their strength and versatility, making them a go-to option for many industrial and commercial applications. Their hollow design provides enhanced force distribution, making them suitable for high-stress environments. On the other hand, closed-end rivets excel in applications requiring a strong, reliable seal to prevent leakage, moisture, or contaminants.

When choosing between tubular rivets and closed-end rivets, consider factors such as the material being fastened, access to both sides of the joint, the need for sealing, and the installation method. By understanding the strengths and limitations of each type of rivet, you can ensure that your connection is secure, durable, and well-suited to the demands of your project.
